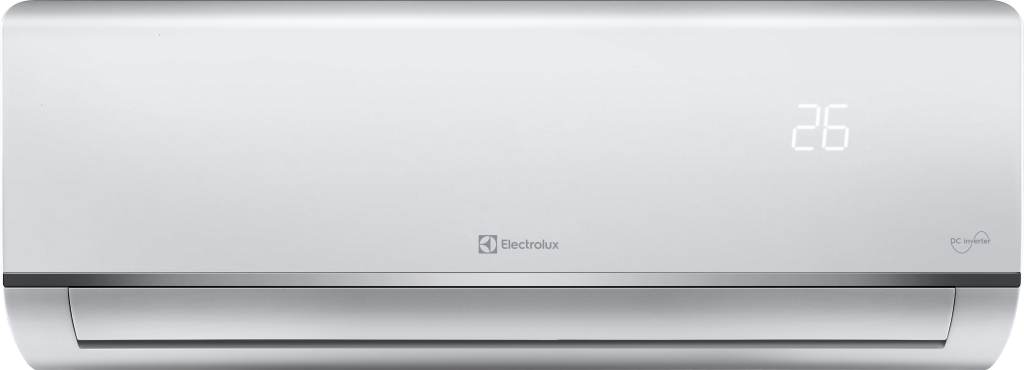

Inverter Air Conditioner Electrolux EACS/I-12HVW/HC/N8 EEC (Wi-Fi)
Description
Electrolux Climate System — HVW/HC Series
Inverter air conditioners with outdoor unit heating cable, dual air purification (UVC lamp + filters), heating down to −25 °C, and operation at only 23 dB.
+8 °C Heating Mode
Electrolux air conditioners maintain a minimum room temperature of approximately +8 °C and prevent freezing during the cold season when occupants are temporarily away.
This saves electricity and prevents pipes and other household elements from freezing.
High Efficiency and Reliable Heating Operation Down to −25 °C

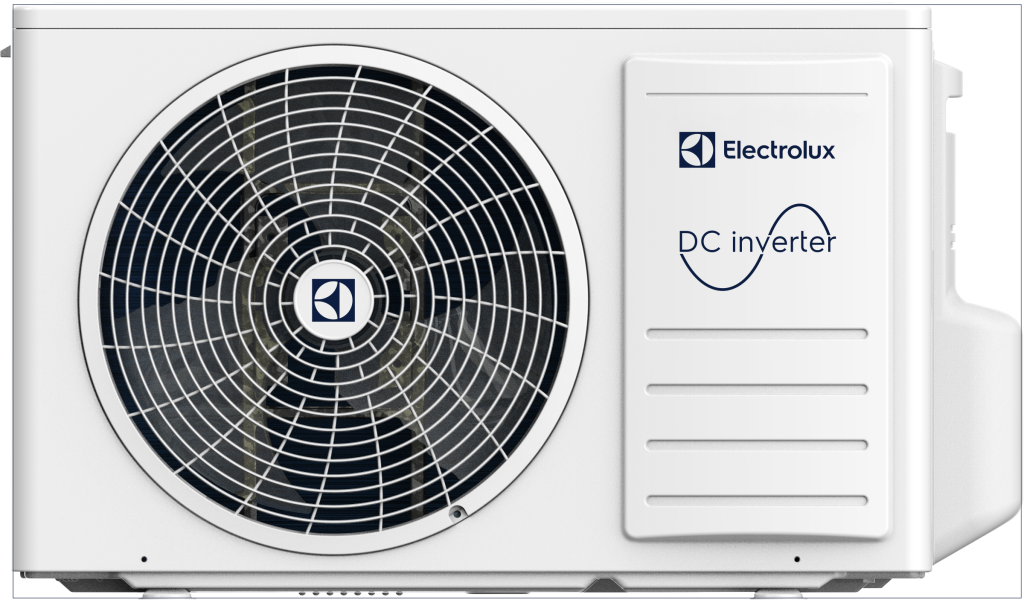

Thanks to the built-in heating cable on the outdoor unit, the series operates reliably even at very low temperatures.
Electrolux split systems feature a high seasonal cooling energy class SEER A++ and a heat pump with efficient heating performance SCOP A+.
Silent Operation
Thanks to the indoor unit design and DC inverter technology, the noise level is only 23 dB.
The quiet operation will never disturb your sleep.
HVW/HC DC Inverter
A Unique Air Conditioner with Air Purification Function and 7 Speeds
Electrolux air conditioners not only cool and heat the air in your home — they also take care of its quality:
- Special filtration systems and modern technologies help protect you and your loved ones from microbes, viruses, and bacteria.
- The HVW/HC series features a dual purification system: a UVC lamp and 2 multi-functional filters.
Clean Air at Home
The UVC lamp generates ultraviolet radiation of 240–280 nm, penetrates the cell, and destroys the virus structure.
Easy Control

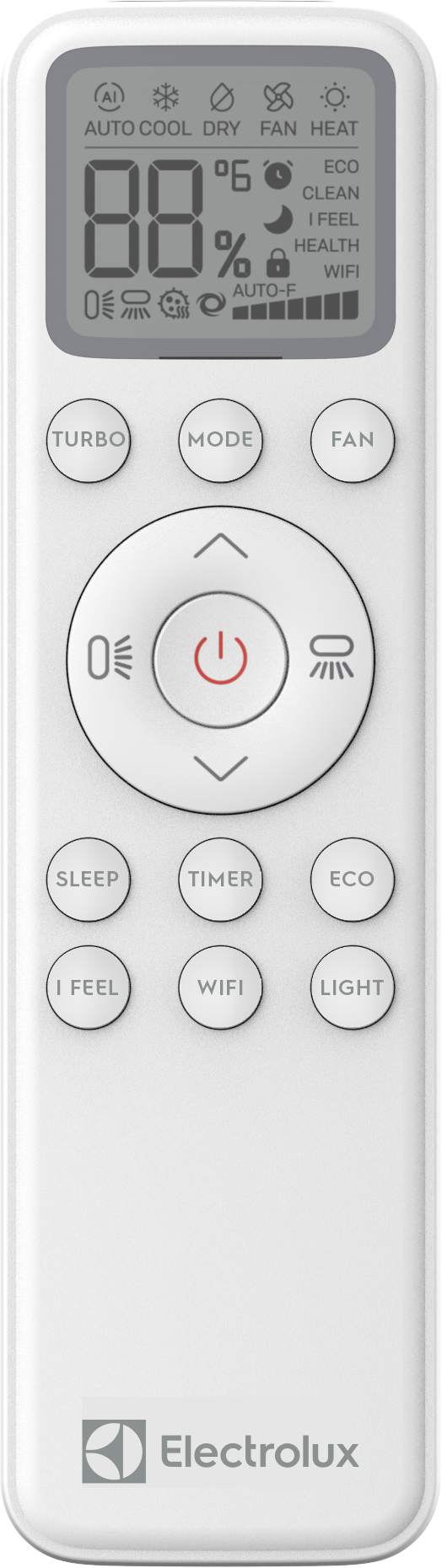

For comfortable use, the split system offers a remote control with a classic, intuitive interface.
7 Speeds
7 different fan speeds ensure quiet operation and maximum fast room cooling.
HVW/HC Series
Key Advantages
HVW/HC DC Inverter
Features and Convenience
HVW/HC DC Inverter
Technical Specifications
DC Inverter · refrigerant R32 · outdoor unit heating cable. Scroll the table sideways to view all models.
| Parameter | 9,000 BTUEACS/I-09HVW/HC/N8 EEC | 12,000 BTUEACS/I-12HVW/HC/N8 EEC | 18,000 BTUEACS/I-18HVW/HC/N8 EEC | 24,000 BTUEACS/I-24HVW/HC/N8 EEC |
|---|---|---|---|---|
| Capacity | ||||
| Declared cooling capacity (W) | 2600 | 3400 | 5100 | 7100 |
| Declared heating capacity (W) | 2700 | 3500 | 5400 | 7700 |
| Power consumption — cooling (W) | 910 | 1260 | 1700 | 2080 |
| Power consumption — heating (W) | 765 | 1100 | 1720 | 1970 |
| Energy Efficiency | ||||
| SEER | 6.1 | 6.1 | 6.1 | 7.1 |
| Energy class (cooling) | A++ | A++ | A++ | A++ |
| SCOP (average climate) | 4.0 | 4.0 | 4.0 | 4.1 |
| Energy class (heating, average) | A+ | A+ | A+ | A+ |
| Electrical Data | ||||
| Power supply | 220-240V~/50Hz/1P | 220-240V~/50Hz/1P | 220-240V~/50Hz/1P | 220-240V~/50Hz/1P |
| Operating voltage range (V) | 145~264 | 145~264 | 145~264 | 145~264 |
| Operating current — cooling (A) | 4.1 | 5.2 | 7.5 | 9.3 |
| Operating current — heating (A) | 3.4 | 4.9 | 7.6 | 8.8 |
| Refrigeration System & Noise | ||||
| Refrigerant / charge | R32 / 0.50 kg | R32 / 0.55 kg | R32 / 0.77 kg | R32 / 1.6 kg |
| Sound pressure level (dB) | 42/40/38/23 | 42/40/38/23 | 48/40/38/23 | 49/45/43/41/39/37/23 |
| Connections | ||||
| Gas pipe (inch) | 3/8" | 3/8" | 1/2" | 5/8" |
| Liquid pipe (inch) | 1/4" | 1/4" | 1/4" | 1/4" |
| Operating Range | ||||
| Outdoor temperature — cooling (°C) | -15~43 | -15~43 | -15~43 | -15~43 |
| Outdoor temperature — heating (°C) | -25~24 | -25~24 | -25~24 | -25~24 |
| Dimensions & Weight | ||||
| Indoor unit dimensions W×H×D (mm) | 792×279×195 | 792×279×195 | 870×290×200 | 1081×248×327 |
| Outdoor unit dimensions W×H×D (mm) | 729×431×318 | 729×431×318 | 810×556×326 | 960×700×396 |
| Indoor unit net weight (kg) | 8.0 | 8.0 | 9 | 13 |
| Outdoor unit net weight (kg) | 20 | 20 | 25 | 42 |
Data are per manufacturer specification and subject to change without notice.
