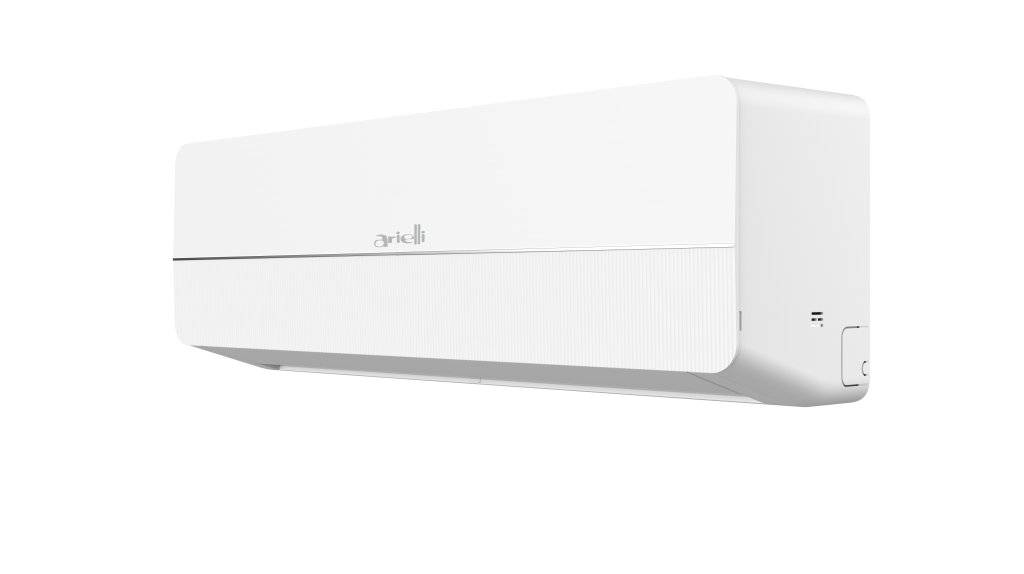

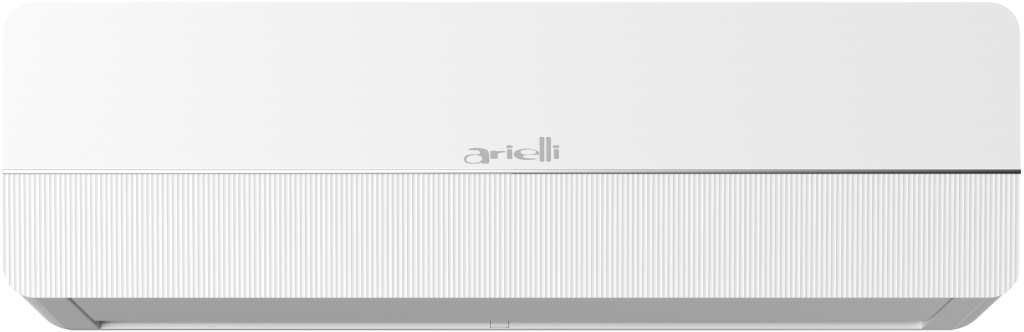

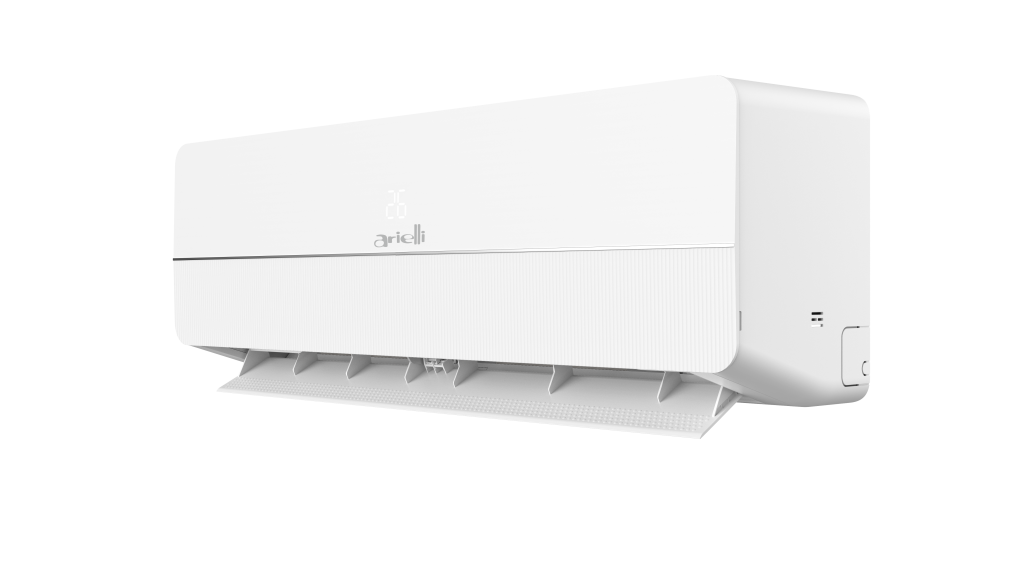

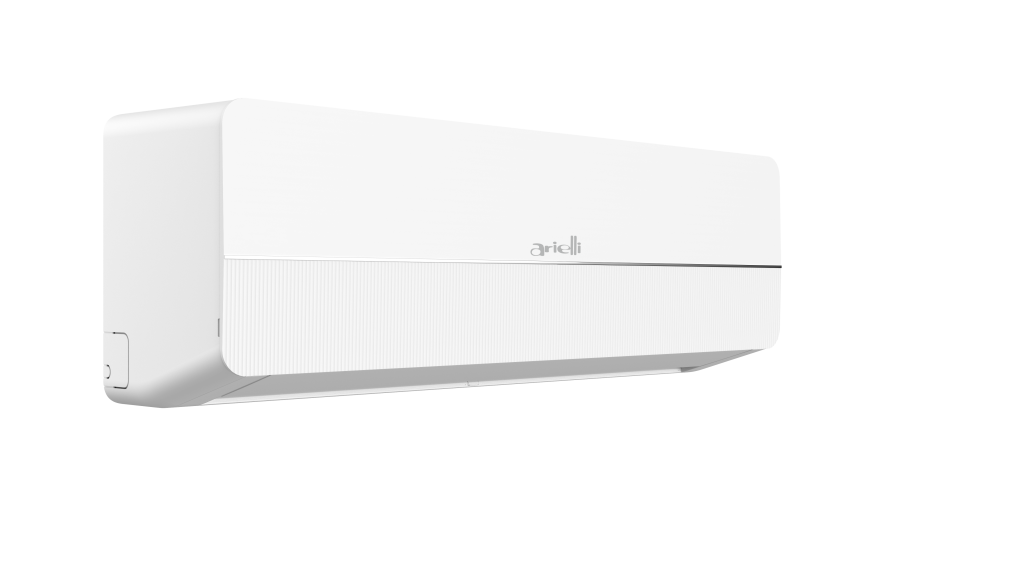

Inverter Air Conditioner ARIELLI ACSD-18DW (WI-FI)
_stuff_66024__pic3_1557621241_66855-1024.png)
Description
The quiet climate of your home
An inverter wall-mounted air conditioner with Wi-Fi control, I Feel precision and self-cleaning — in four capacities from 9,000 to 24,000 BTU.
The climate in your pocket
Coming home to the August heat? Turn on the cooling from your car and walk into a cool home. Off on holiday and can’t remember whether you switched it off? Check from the beach.
With the USB Wi-Fi module, the DS series is controlled from your phone — anywhere, anytime. Temperature, modes, timer and schedule: everything is on one screen, without getting up from the sofa. Or the sun lounger.
The degrees are measured where you are
An ordinary air conditioner measures the temperature at itself — two and a half metres up, near the ceiling, where it is always warmer. That is why "22 degrees" on the display are rarely 22 degrees on the sofa.
With I Feel, the sensor is in the remote control — that is, next to you. The air conditioner maintains the temperature in your zone, not in its own. A small difference in design, a big difference in how it feels.
The air conditioner that cleans itself
Moisture on the heat exchanger is the favourite spot of dust and mould — and the reason old air conditioners smell. The DS series solves the problem radically: it freezes its own heat exchanger, and during defrosting the ice carries away the stuck-on dirt. Finally, it dries it completely.
One button, four steps, zero effort — and the air passes through a clean surface every season.
Golden protection inside
The heat exchanger works in constant moisture — and moisture breeds corrosion, corrosion steals efficiency. That is why the fins of the DS series carry a golden anti-corrosion coating that repels water and gives rust no chance.
The result is not seen in the first year — it is seen in the seventh: the same efficiency, the same hygiene, with no hidden ageing in the heart of the machine.
Turbo mode
Maximum power at one touch — from heat to comfort in minutes, then smooth maintenance.
Sleep mode
It follows the natural rhythm of sleep: it gently adjusts the temperature through the night and saves energy while you sleep.
Independent dehumidification
It removes moisture without overcooling — a lifesaver on rainy summer days and for rooms with heavy air.
Anti-Cold Air
When heating, it does not blow until it warms up — no icy draught on a winter morning, only warm air from the first second.
Clean air
A high-density filter captures dust and pollutants, and the Mildew Proof protection stops mould before it even appears.
Hidden display
Discreet indication that disappears when you don’t need it — nothing lights up unnecessarily in the bedroom at night.
Technical characteristics
| Parameter | ACSD-09DS | ACSD-12DS | ACSD-18DS | ACSD-24DS |
|---|---|---|---|---|
| Cooling capacity | 2.5 kW | 3.5 kW | 5.0 kW | 7.1 kW |
| Heating capacity | 2.6 kW | 3.5 kW | 5.0 kW | 7.1 kW |
| Energy class (cool./heat.) | A++ / A+++ | A++ / A+++ | A++ / A+++ | A++ / A+++ |
| SEER / SCOP | 6.1 / 4.0 | 6.1 / 4.0 | 6.1 / 4.0 | 6.1 / 4.0 |
| Power consumption (cool./heat.) | 770 / 690 W | 1190 / 950 W | 1540 / 1340 W | 2400 / 2200 W |
| Recommended area* | up to 25 m² | up to 32 m² | up to 48 m² | up to 60 m² |
| Noise, indoor unit | 34–40 dB(A) | 36–42 dB(A) | 35–44 dB(A) | 37–46 dB(A) |
| Noise, outdoor unit | 50 dB(A) | 52 dB(A) | 56 dB(A) | 59 dB(A) |
| Air flow (max.) | 500 m³/h | 550 m³/h | 820 m³/h | 1150 m³/h |
| Dehumidification | 0.9 L/h | 1.1 L/h | 1.8 L/h | 2.2 L/h |
| Refrigerant | R32 (0.60 kg) | R32 (0.63 kg) | R32 (1.00 kg) | R32 (1.40 kg) |
| Operating range, outdoor temp. | Cooling: 16 ÷ 52 °C · Heating: −15 ÷ 24 °C | |||
| Indoor unit (W×H×D), weight | 700×270×200 mm, 7 kg | 805×270×200 mm, 7.5 kg | 908×295×223 mm, 10 kg | 1025×320×226 mm, 12.6 kg |
| Outdoor unit (W×H×D), weight | 660×530×250 mm, 21.2 kg | 660×530×250 mm, 22.8 kg | 780×560×270 mm, 27.6 kg | 819×638×309 mm, 36.7 kg |
| Wi-Fi control | Yes | Yes | Yes | Yes |
* An approximate value for a standard room height and average thermal insulation; precise sizing depends on orientation, glazing and insulation.
months warranty
Official import and service support for Bulgaria by Magnum-D Ltd.
